System 50 Extraction Arms: Small & Very Flexible

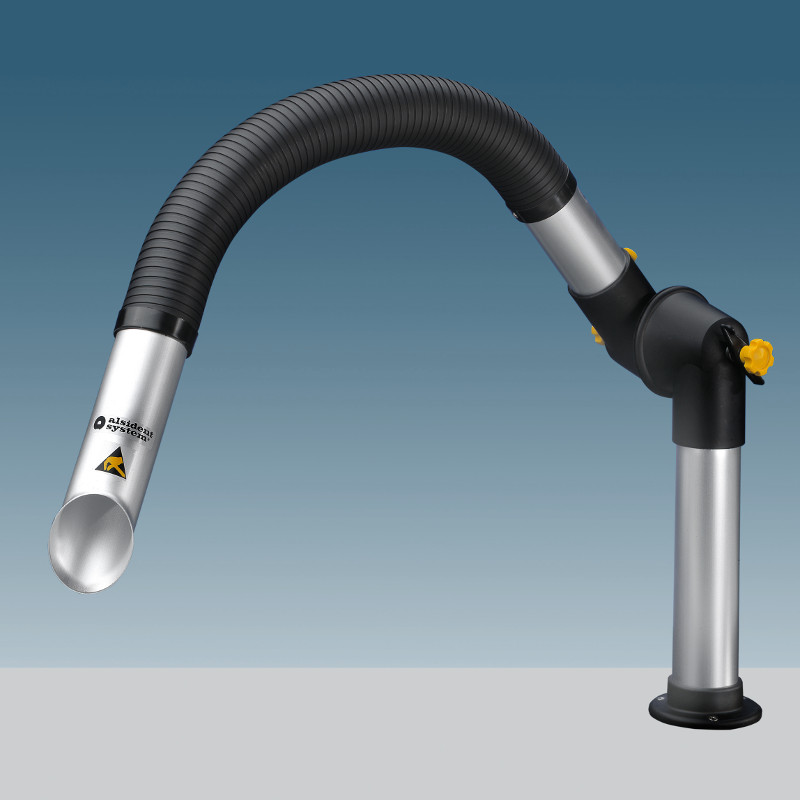

The Alsident System 50 is ideal for capturing fumes, smoke and dust from precision processes, such as in the electronics industry, dental clinics, laboratories, laser technology, hairdressing and nail salons, and jewelry making. The System 50 Flex arm features self-supporting flex hose and pipe for extra flexibility.
System 50 Specifications |
Arm Diameter: |
2 inches |
Flow Rates: |
25-50 CFM |
Reach: |
Up to 65 inches (Flex Arm up to 35 inches) |
Materials: |
Aluminum (AL) or Anti-Static (AS) |
Compatible Tips and Hoods: |
Suction pens (only option for Flex Arm), suction nozzles, hoods in choice of shapes, sizes & materials, up to 15" diameter |
Other Accessories: |
Table & wall brackets, ceiling column mounts, and reducers |

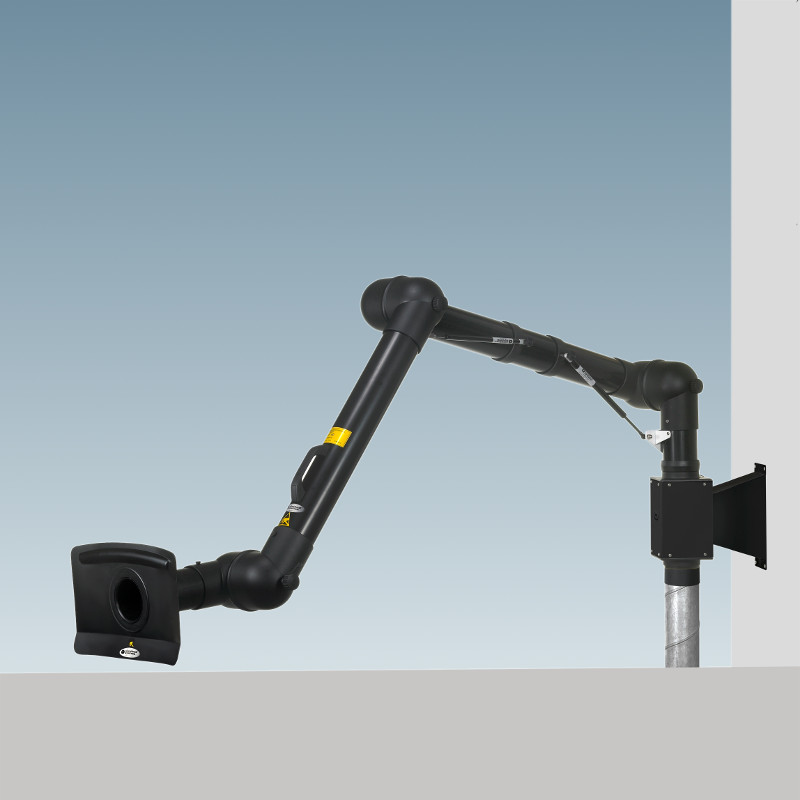

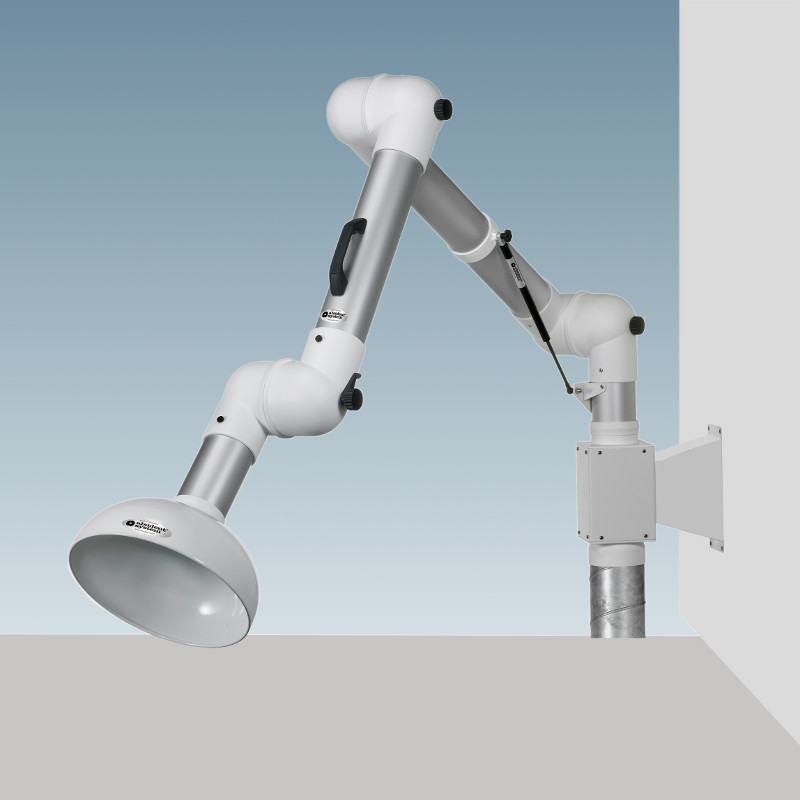

System 75 Extraction Arms: Easily-Positioned & Versatile
The multi-purpose Alsident System 75 series of arms is used to capture fumes, dust and smoke in a wide variety of applications, including the chemical, medical and food industries, laboratories, laser technology, schools and universities, and machine shops. The System 75 Telescopic, a two-joint extraction arm with telescopic tubes, is compact and particularly suitable for stationary work stations such as extraction from vessels or at weighing stations.
System 75 Specifications |
Arm Diameter: |
3 inches |
Flow Rates: |
45-105 CFM |
Reach: |
Up to 78 inches |
Materials: |
Aluminum (AL), Anti-Static (AS) or Chemical-Resistant (CR) (System 75 Telescopic in Aluminum only) |
Compatible Tips and Hoods: |
Suction pens, suction nozzles, choice of hoods in various shapes, sizes & materials, up to 16" width |
Other Accessories: |
Table & wall brackets, ceiling column mounts, and reducers |

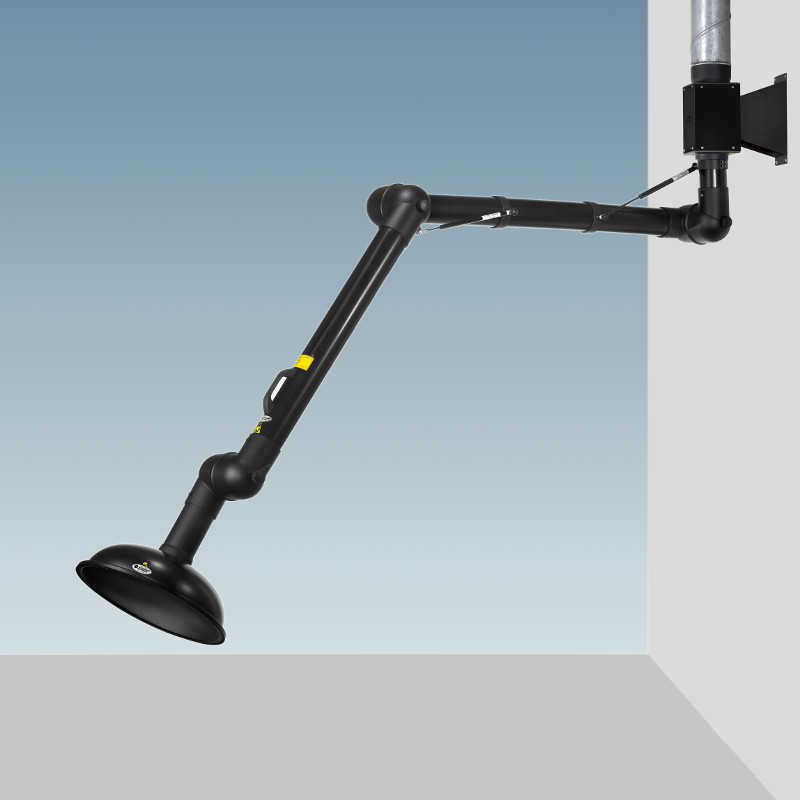

System 100 Extraction Arms: Powerful & Long-Reach
The Alsident System 100 large-capacity arms are designed for heavy-duty source capture in a variety of applications, including laboratories, hospitals, the chemical, pharmaceutical and food industries, universities and machine shops.
System 100 Specifications |
Arm Diameter: |
4 inches |
Flow Rates: |
80-235 CFM |
Reach: |
Up to 103 inches |
Materials: |
Aluminum (AL), Anti-Static (AS) or Chemical-Resistant (CR) |
Compatible Tips and Hoods: |
Choice of hoods in various shapes, sizes & materials, up to 20" diameter |
Other Accessories: |
Table & wall brackets, ceiling column mounts, and reducers |
Wide Selection of Hoods, Brackets & Other Accessories

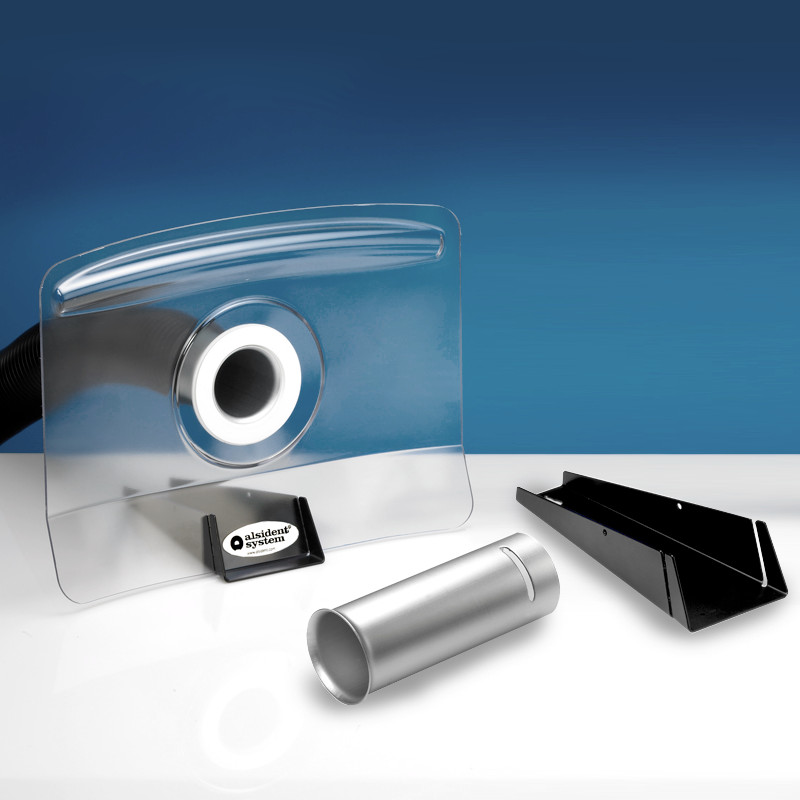

In order to best fit every type of need, the complete Alsident extraction arm system is made up of three parts ordered separately: the extraction arm, the hood, and the mounting bracket. Our broad range of tips and hoods, table and wall brackets, and ceiling columns allows the extraction system to be designed for each specific workplace and contaminant.
Other accessories provide additional adaptation, structural support, aesthetic features, and safety features.
|
Suction Pen Tip |
Suction Nozzle |
Choice of Hoods |
Table Brackets |
Wall Brackets |

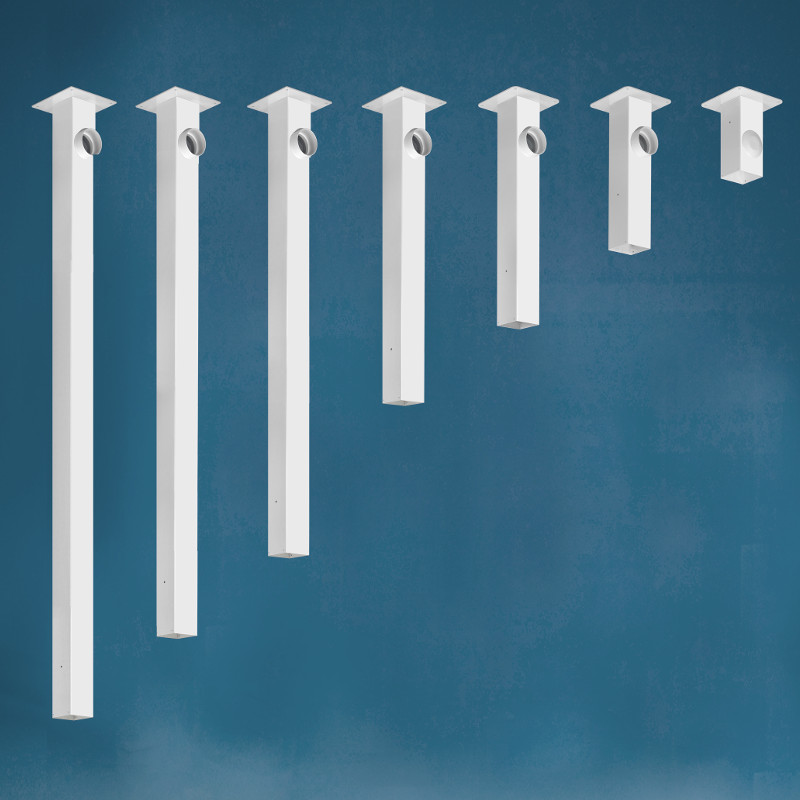

Ceiling Columns |

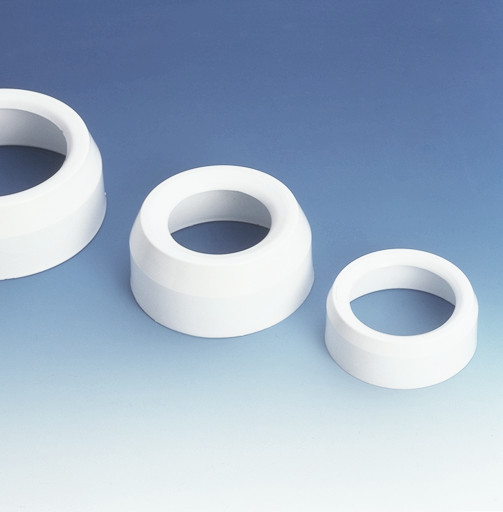

Choice of Reducers |

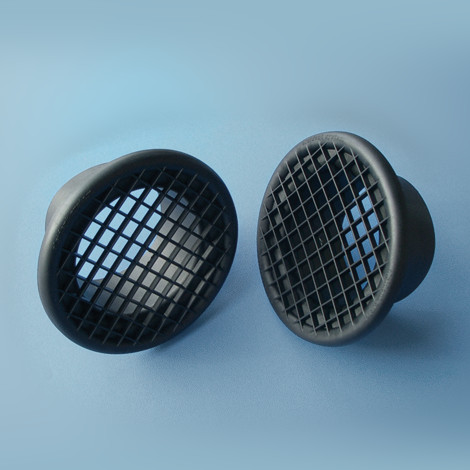

Protective Grill |
Support Bracket |
Covering Flange |
Airflow Alarm |
System 50 |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
System 75 |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
System 100 |
|
|
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
High Quality Extraction Arms for a Cleaner Working Environment
Alsident System extraction arms were first manufactured more than thirty-five years ago for the needs of dental labs and clinics, and soon included the electronics industry. Today the company provides a broad range of source capture arms to more than 30 industries in more than 50 countries around the globe.
Why Choose Alsident?
- Broad range of arms for all types of needs.
Materials include standard aluminum, anti-static, and chemical-resistant materials. We sell our many arms, hoods, and brackets separately, making every arm kit customized to the exact application. In addition, we can offer solutions tailored to special needs.
- Quality and durability.
Our arms are made to last and have a stylish appearance, whether on the production floor, or in the laboratory, clinic or salon.
- User-friendly operation and low maintenance.
Alsident System arms are self-supporting, very flexible and easy to position; they are also easy-to-clean with all models featuring simple, tool-free assembly.
- Performance verified by independent testing.
Testing reports are available for extraction efficiency, conductivity (for anti-static arms), noise level, and pressure drop.
- Expertise in application and installation.
Our customers benefit from complete product documentation and instructions, as well as the support and ready assistance of our skilled local representatives.
Contact Us
We are here to assist you. Whether we can help you select the best extraction arm for your needs, give you guidance for installation, or just answer a question, just let us know!
